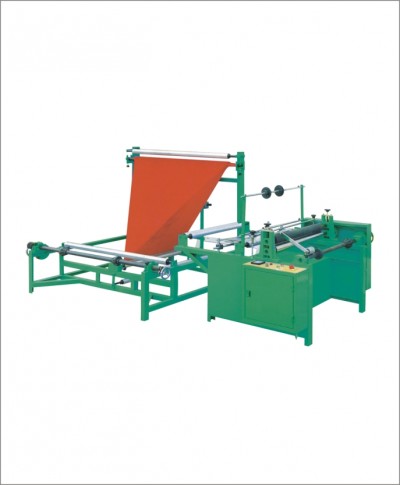

This machine is one part of the heat cutting machine set, suitable for folding BOPP sheet with such functions as automatic gluing, pearly-lustre film laminating, hobbling and longitudinal sealing(used together with super sonic generator) and opening breaking of roll material.
Technical data:
| Model | MDZB1200 | MDZB1400 | MDZB1600 |
| Max. width of base material | 1200mm | 1400mm | 1600mm |
| Dia of jumbo roll | 650mm | 650mm | 650mm |
| Max. roll speed | 90m/min | 90m/min | 90m/min |
| Total power | 1.5kw | 2kw | 2.5kw |
| Outline dimension | 2400x1500x1500mm | 2600x1700x1600mm | 2800x1900x1700mm |
| Weight | 800kg | 900kg | 1000kg |
